INST 10 - Compact Contents Gauge
Rating
5 out of 5 stars
Product Information
£51.00 inc VAT
Low in stock
Key Features
- Measures cylinder pressures up to 400 bar
- Compact, low-profile design
- One-piece nickel-plated brass construction
- Precision copper beryllium Bourdon tube mechanism
- Easy-to-read luminescent dial
- Impact-resistant polycarbonate lens
- Protective rubber boot with swivel connection
- High-pressure 810mm (32") thermoplastic hose included
- Certified to EN250:2014 and Regulation (EU) 2016/425
Description
Northern Diver INST-10 Compact Contents Gauge
- Compact submersible pressure gauge (SPG)
- Pressure range up to 400 bar
- One-piece nickel-plated brass body
- Copper beryllium Bourdon tube mechanism
- Luminescent dial for excellent readability
- Polycarbonate impact-resistant lens
- Protective swivel-mounted rubber housing
- 81cm (32") high-pressure thermoplastic hose
- Clearly marked reserve zone below 50 bar
- Military diving operations
- Commercial diving
- Public safety diving
- Dive schools and training centres
- Recreational scuba diving
- Professional diving applications
- Equipment servicing and replacement
Specifications
Maximum Pressure | 400 bar
Pressure Scale | 0–400 bar
Graduation | 10 bar increments
Reserve Zone | 50–0 bar (red)

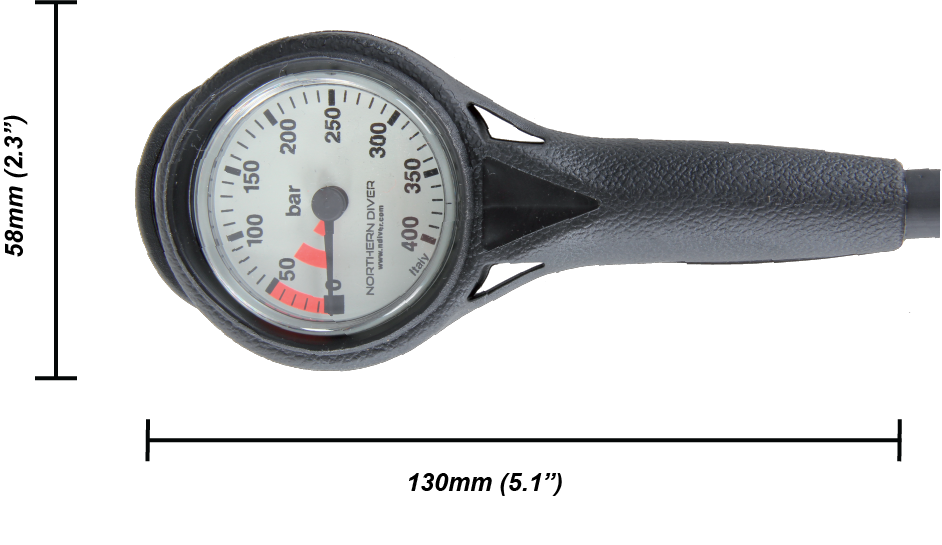

Face Diameter | 42mm
Overall Diameter | 50mm
Hose Length | 81cm (32")
Weight | 275g
Body Material | Nickel-plated brass
Pressure Mechanism | Copper beryllium Bourdon tube
Lens Material | Polycarbonate
Housing | Swivel-mounted protective rubber boot
Certification | EN250:2014 & Regulation (EU) 2016/425
Reviews
Nice compact gauge and easy to read
By Marc Ranger (via Trustpilot Aug 2022) on Aug 18, 2022
Nice compact gauge and easy to read. It also feels well made. Which make it great value for money
